Elasticsearch for Java趟坑记录

项目地址

安装

  1. elasticsearch

    我安装的是6.2.2版本,刚入坑不太敢用新版本的,怕找资料麻烦,这也直接影响后续安装的插件得是6.2.2同是6.x版本的都不行

  2. kibana 6.2.2

    方便管理elasticsearch的工具,启动后访问localhost:5601可以直接在控制台进行测试

    # 查看健康状态,Green为正常
    GET /_cat/health?v
    GET /_cat/indices?v
    GET /_cluster/health?pretty=true
    # 如果状态是Yellow,可以进行以下设置
    PUT /_settings
    {
        "index" : {
            "number_of_replicas" : 0
        }
    }

  3. elasticsearch-analysis-ik 中文分词插件

    版本要和elasticsearch一致,即6.2.2

    elasticsearch安装目录plguins下新建ik文件夹,解压elasticsearch-analysis-ik到ik文件夹

  4. 自定义词库

    我是用清华开放词库的开放词库,选择需要的词典拼在一起,做成userdict.txt

    进入config目录,将自定义词典放在该目录下

    修改IKAnalyzer.cfg.xml自定义词典的路径

    $xslt
    <entry key="ext_dict">userdict.txt</entry>

    重启elasticsearch

记录

以下OcrTextResult为自定义的类

lombok使用

Lombok简介

Jest索引操作 | ik中文分词设置

注意ik_smartik_max_words区别

elasticsearch节点基本的设置已经废弃,手动设置索引级别如下

PUT ocr
{
    "settings": {
        "index": {
           "number_of_shards": 1,
           "number_of_replicas": 1
        },
        "analysis": {
            "analyzer": {
                "ik": {
                    "tokenizer": "ik_smart"
                }
            }
        }
    },
    "mappings": {
        "doc": {
            "dynamic": true,
            "properties": {
              "textResult":{
                "type": "nested",
                "properties": {
                  "text":{
                    "type": "text",
                    "analyzer": "ik_smart",
                    "search_analyzer": "ik_smart"
                  }
                }
              },
                "ocrText": {
                  "type": "text",
                  "analyzer": "ik_smart",
                  "search_analyzer": "ik_smart"
                }
            }
        }
    }
}

创建索引

Jest java创建索引的操作方法如下:

public JestResult createIndexMapping(String index, String settinsJson, String mappingsJson) {
    JestResult jestResult = null;
    try {
        CreateIndex createIndex = new CreateIndex.Builder(index)
                .settings(settinsJson)
                .mappings(mappingsJson)
                .build();
        jestResult = jestClient.execute(createIndex);
        log.info("createIndexMapping result:{}" + jestResult.isSucceeded());
        if (!jestResult.isSucceeded()) {
            log.error("settingIndexMapping error:{}" + jestResult.getErrorMessage());
        }
    } catch (IOException e) {
        e.printStackTrace();
    }
    return jestResult;
}

settingsJsonmappingsJson都是以上拼接好的字符串,主要分布要取"settings":{}"mappings":{}内的部分

判断索引是否存在

判断索引是否存在,判断result.isSucceeded()

public JestResult indicesExists(String index) {
    IndicesExists indicesExists = new IndicesExists.Builder(index).build();
    JestResult result = null;
    try {
        result = jestClient.execute(indicesExists);
        log.info("indicesExists == " + result.getJsonString());
    } catch (IOException e) {
        e.printStackTrace();
    }
    return result;
}

获取索引配置

public boolean getIndexSettings(String index) {
    try {
        JestResult jestResult = jestClient.execute(new GetSettings.Builder().addIndex(index).build());
        log.info(jestResult.getJsonString());
        return jestResult.isSucceeded();
    } catch (IOException e) {
        e.printStackTrace();
    }
    return false;
}

保存

public boolean save(Ocr ocr) {
    Index index = new Index.Builder(ocr).index(INDEX).type(TYPE).build();
    try {
        JestResult jestResult = jestClient.execute(index);
        log.info("save返回结果{}", jestResult.getJsonString());
        return jestResult.isSucceeded();
    } catch (IOException e) {
        log.error("save异常", e);
        return false;
    }
}

删除索引

public JestResult deleteIndex(String index) {
    DeleteIndex deleteIndex = new DeleteIndex.Builder(index).build();
    JestResult result = null;
    try {
        result = jestClient.execute(deleteIndex);
        log.info("deleteIndex == " + result.getJsonString());
    } catch (IOException e) {
        e.printStackTrace();
    }
    return result;
}

Java文件读取Json文件

使用Apache Commons IOAlibaba FastJson

<dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.4</version>
</dependency>

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.40</version>
</dependency>
public static List<File> getFileList(String strPath, List<File> filelist) {
    File dir = new File(strPath);
    File[] files = dir.listFiles(); // 该文件目录下文件全部放入数组
    if (files != null) {
        for (int i = 0; i < files.length; i++) {
            String fileName = files[i].getName();
            if (files[i].isDirectory()) { // 判断是文件还是文件夹
                getFileList(files[i].getAbsolutePath(), filelist); // 获取文件绝对路径
            } else if (fileName.endsWith("json")) { // 判断文件名是否以.avi结尾
                String strFileName = files[i].getAbsolutePath();
                System.out.println("---" + strFileName);
                filelist.add(files[i]);
            } else {
                continue;
            }
        }

    }
    return filelist;
}

// 读取Json文件
String path = 文件路径;
List<File> filelist = new ArrayList<File>();
Utils.getFileList(path, filelist);
for (File file : filelist) {
    String input = FileUtils.readFileToString(file, "UTF-8");
    JSONObject jsonObject = JSONObject.parseObject(input);
    ...
}

Jest搜索操作

手动测试搜索,指令如下:

# 模糊搜索
GET ocr/doc/_search
{
  "query": {
    "bool": {
      "should": [
        {
          "match": {
            "ocrText": "${queryString}"
          }
        },
        {
          "nested": {
            "path": "textResult",
            "query": {
              "match": {
                "textResult.text": "${queryString}"
              }
            }
          }
        }
      ]
    }
  },
  "_source": ["ocrText","pdfUrl","id"],
  "highlight": {
    "fields": {
      "textResult.text": {},
      "ocrText": {}
    }
  }
}

# 详细信息
GET ocr/doc/_search
{
  "query": {
    "bool": {
      "must": [
        {
          "match": {
            "id": "${id}"
          }
        },
        {
          "nested": {
            "path": "textResult",
            "query": {
              "match": {
                "textResult.text": "${wd}"
              }
            },
            "inner_hits":{
              "_source":["textResult"]
            }
          }
        }
      ]
    }
  },
  "highlight": {
    "fields": {
      "textResult.text": {}
    }
  }
}

Get By Id

public Ocr get(String id) {
    Get get = new Get.Builder(INDEX, id).type(TYPE).build();
    try {
        JestResult result = jestClient.execute(get);
        if (result.isSucceeded())
            return result.getSourceAsObject(Ocr.class);
    } catch (IOException e) {
        log.error("get异常", e);
    }
    return null;
}

使用json搜索,包含nested搜索和获取inner_hits

public SearchResult jsonSearch(String json, String indexName, String typeName) {
    Search search = new Search.Builder(json).addIndex(indexName).addType(typeName).build();
    try {
        return jestClient.execute(search);
    } catch (Exception e) {
        log.warn("index:{}, type:{}, search again!! error = {}", indexName, typeName, e.getMessage());
        sleep(100);
        return jsonSearch(json, indexName, typeName);
    }
}

用以上手动测试的json搜索

public Page<Ocr> query(String queryString, int pageNo, int size) {
    String queryJson = "{\n" +
            "  \"query\": {\n" +
            "    \"bool\": {\n" +
            "      \"should\": [\n" +
            "        {\n" +
            "          \"match\": {\n" +
            "            \"ocrText\": \"${queryString}\"\n" +
            "          }\n" +
            "        },\n" +
            "        {\n" +
            "          \"nested\": {\n" +
            "            \"path\": \"textResult\",\n" +
            "            \"query\": {\n" +
            "              \"match\": {\n" +
            "                \"textResult.text\": \"${queryString}\"\n" +
            "              }\n" +
            "            }\n" +
            "          }\n" +
            "        }\n" +
            "      ]\n" +
            "    }\n" +
            "  },\n" +
            "  \"_source\": [\"ocrText\",\"pdfUrl\",\"id\"], \n" +
            "  \"highlight\": {\n" +
            "    \"fields\": {\n" +
            "      \"textResult.text\": {},\n" +
            "      \"ocrText\": {}\n" +
            "    }\n" +
            "  }\n" +
            "}";
    queryJson = queryJson.replace("${queryString}", queryString);
    log.info("QueryString: {}" + queryJson);
    Search search = new Search.Builder(queryJson).addIndex(INDEX).addType(TYPE).build();
    SearchResult searchResult = null;
    try {
        searchResult = jestClient.execute(search);

        if (searchResult.isSucceeded()) {
            List<SearchResult.Hit<Ocr, Void>> hits = searchResult.getHits(Ocr.class);
            List<Ocr> ocrs = hits.stream().map(hit -> {
                Ocr ocr = hit.source;
                Map<String, List<String>> highlight = hit.highlight;
                if (highlight.containsKey("ocrText")) {
                    Object arr[] = highlight.get("ocrText").toArray();
                    List<String> ocrTexts = new ArrayList<>();
                    for (Object o : arr) {
                        ocrTexts.add((String) o);
                    }
                    ocr.setHlOcrText(ocrTexts);
                }
                if (highlight.containsKey("textResult.text")) {
                    Object arr[] = highlight.get("textResult.text").toArray();
                    List<String> textResults = new ArrayList<>();
                    for (Object o : arr) {
                        textResults.add((String) o);
                    }
                    ocr.setHlTextResult(textResults);
                }
                return ocr;
            }).collect(toList());
            int took = searchResult.getJsonObject().get("took").getAsInt();
            Page<Ocr> page = Page.<Ocr>builder().list(ocrs).pageNo(pageNo).size(size).total(searchResult.getTotal()).took(took).build();
            return page;
        } else {
            log.warn("查询失败:index:{}, type:{}, error = {}", INDEX, TYPE, searchResult.getResponseCode());
        }
    } catch (Exception e) {
        log.error("执行查询失败,抛出异常:index:{}, type:{}", INDEX, TYPE);
        return null;
    }

    return null;
}

@Override
public Ocr queryDetail(String id, String queryString) {
    String queryJson = "{\n" +
            "  \"query\": {\n" +
            "    \"bool\": {\n" +
            "      \"must\": [\n" +
            "        {\n" +
            "          \"match\": {\n" +
            "            \"id\": \"${id}\"\n" +
            "          }\n" +
            "        },\n" +
            "        {\n" +
            "          \"nested\": {\n" +
            "            \"path\": \"textResult\",\n" +
            "            \"query\": {\n" +
            "              \"match\": {\n" +
            "                \"textResult.text\": \"${queryString}\"\n" +
            "              }\n" +
            "            },\n" +
            "            \"inner_hits\":{\n" +
            "              \"_source\":[\"textResult\"]\n" +
            "            }\n" +
            "          }\n" +
            "        }\n" +
            "      ]\n" +
            "    }\n" +
            "  },\n" +
            "  \"highlight\": {\n" +
            "    \"fields\": {\n" +
            "      \"textResult.text\": {}\n" +
            "    }\n" +
            "  }\n" +
            "}";
    queryJson = queryJson.replace("${queryString}", queryString);
    queryJson = queryJson.replace("${id}", id);
    log.info("QueryString: {}" + queryJson);
    Search search = new Search.Builder(queryJson).addIndex(INDEX).addType(TYPE).build();
    SearchResult searchResult = null;
    try {
        searchResult = jestClient.execute(search);
        if (searchResult.isSucceeded()) {
            List<SearchResult.Hit<Ocr, Void>> hits = searchResult.getHits(Ocr.class);
            List<Ocr> ocrs = hits.stream().map(hit -> {
                Ocr ocr = hit.source;
                Map<String, List<String>> highlight = hit.highlight;
                if (highlight.containsKey("textResult.text")) {
                    Object arr[] = highlight.get("textResult.text").toArray();
                    List<String> textResults = new ArrayList<>();
                    for (Object o : arr) {
                        textResults.add((String) o);
                    }
                    ocr.setHlTextResult(textResults);
                }
                return ocr;
            }).collect(toList());
            // 获取inner_hits
            JsonObject innerHits = searchResult.getJsonObject().get("hits").getAsJsonObject().get("hits").getAsJsonArray().get(0).getAsJsonObject().get("inner_hits").getAsJsonObject();
            JsonArray innerHitsResultArray = innerHits.get("textResult").getAsJsonObject().get("hits").getAsJsonObject().get("hits").getAsJsonArray();
            List<TextResult> textResults = new ArrayList<>();
            for (JsonElement result : innerHitsResultArray) {
                JsonObject source = result.getAsJsonObject().get("_source").getAsJsonObject();
                TextResult textResult = new TextResult();
                textResult.setCharNum(source.get("charNum").getAsInt());
                textResult.setHandwritten(source.get("isHandwritten").getAsBoolean());
                textResult.setLeftBottom(source.get("leftBottom").getAsString());
                textResult.setLeftTop(source.get("leftTop").getAsString());
                textResult.setRightBottom(source.get("rightBottom").getAsString());
                textResult.setRightTop(source.get("rightTop").getAsString());
                textResult.setText(source.get("text").getAsString());
                textResults.add(textResult);
            }
            Ocr ocr = ocrs.get(0);
            ocr.setTextResult(textResults);
            return ocr;
        } else {
            log.error("执行查询失败,抛出异常:index:{}, type:{}", INDEX, TYPE);
            return null;
        }
    } catch (Exception e) {
        log.error("执行查询失败,抛出异常:index:{}, type:{}", INDEX, TYPE);
        return null;
    }
}

分页

private int from(int pageNo, int size) {
    return (pageNo - 1) * size < 0 ? 0 : (pageNo - 1) * size;
}

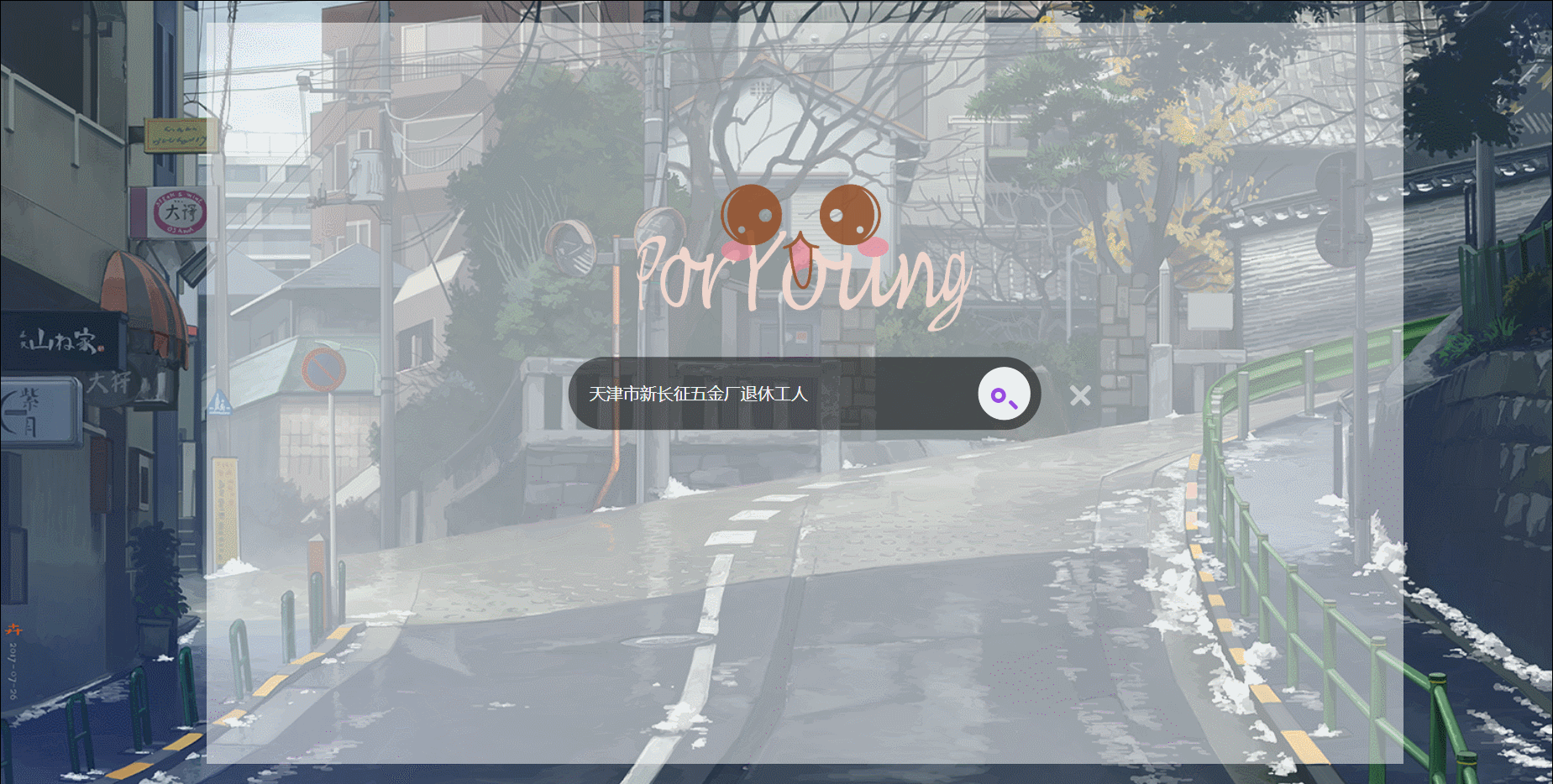

效果

预览

本文链接:Elasticsearch for Java趟坑记录

转载声明:本站文章若无特别说明,皆为原创,转载请注明来源:PorYoung,谢谢!^^

暂无评论

发送评论 编辑评论



|´・ω・)ノ
ヾ(≧∇≦*)ゝ
(☆ω☆)
(╯‵□′)╯︵┴─┴
 ̄﹃ ̄
(/ω\)
∠( ᐛ 」∠)_
(๑•̀ㅁ•́ฅ)
→_→
୧(๑•̀⌄•́๑)૭
٩(ˊᗜˋ*)و
(ノ°ο°)ノ
(´இ皿இ`)
⌇●﹏●⌇
(ฅ´ω`ฅ)
(╯°A°)╯︵○○○
φ( ̄∇ ̄o)
ヾ(´・ ・`。)ノ"
( ง ᵒ̌皿ᵒ̌)ง⁼³₌₃
(ó﹏ò。)
Σ(っ °Д °;)っ
( ,,´・ω・)ノ"(´っω・`。)
╮(╯▽╰)╭
o(*////▽////*)q
>﹏<
( ๑´•ω•) "(ㆆᴗㆆ)
😂
😀
😅
😊
🙂
🙃
😌
😍
😘
😜
😝
😏
😒
🙄
😳
😡
😔
😫
😱
😭
💩
👻
🙌
🖕
👍
👫
👬
👭
🌚
🌝
🙈
💊
😶
🙏
🍦
🍉
😣
Source: github.com/k4yt3x/flowerhd
颜文字
Emoji
小恐龙
花!
上一篇
下一篇
